Ball Balancing Table

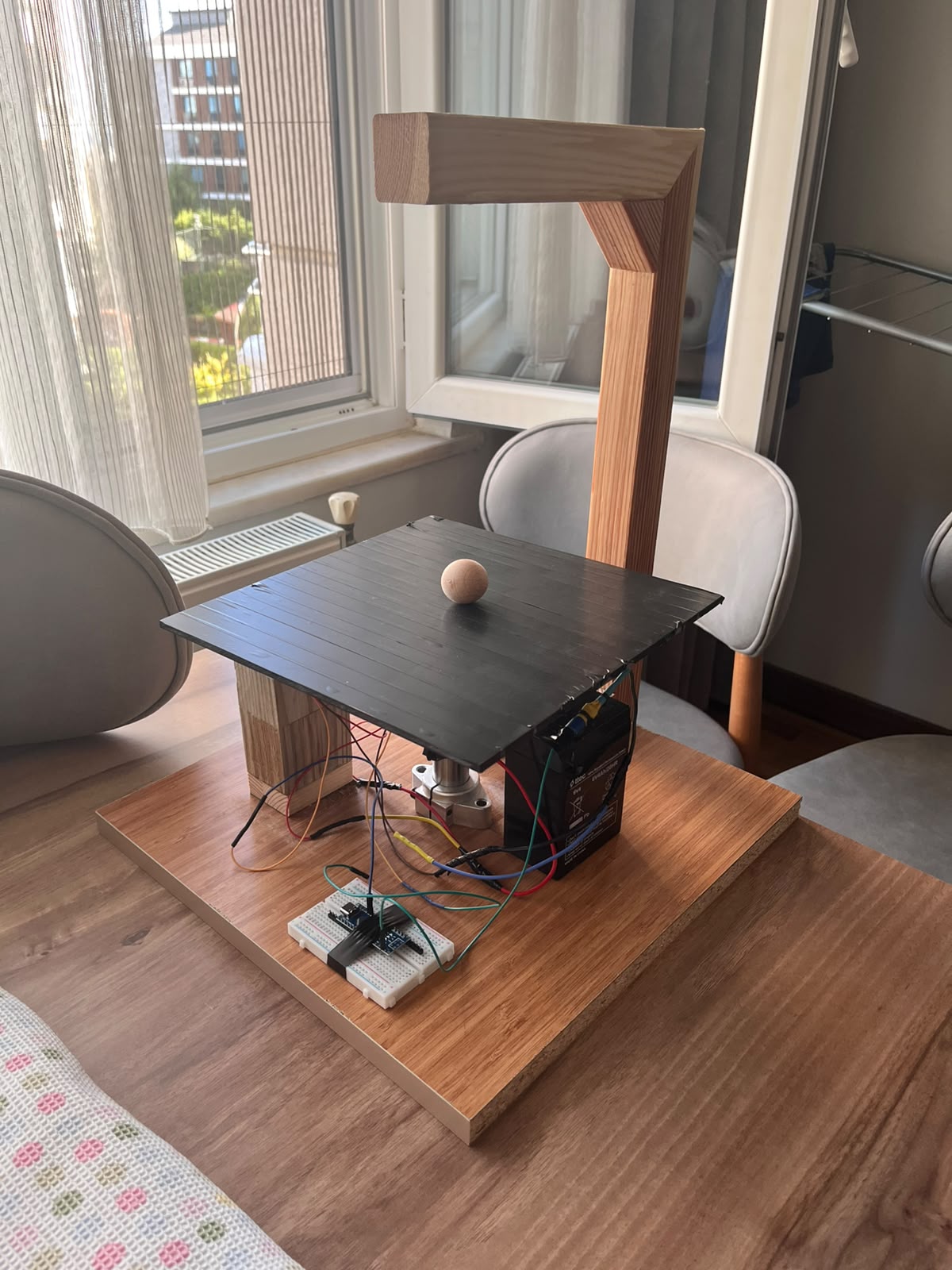

My version of the ball balancing table. A camera tracks a ball on a tilting surface, a PID controller computes the servo angles, and the servos tilt the table to keep the ball from falling off.
- Control
- PID controller
- Sensing
- Camera and computer vision
- Actuation
- Servo motors
- Execution
- Real-time loop
How it works
See

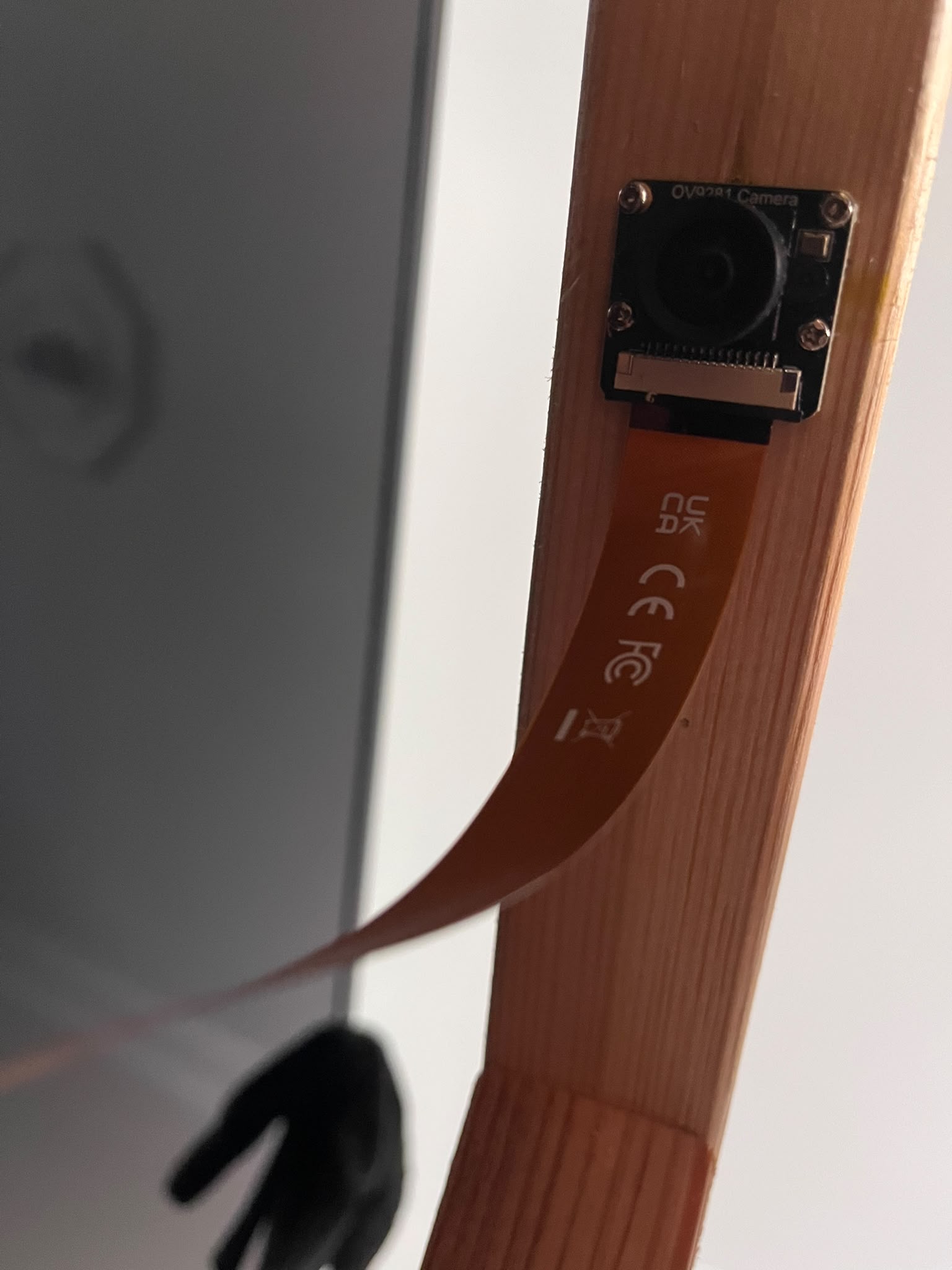

A camera tracks the ball’s position on the surface.
Compute
The PID controller turns the position error into servo angles.
Tilt

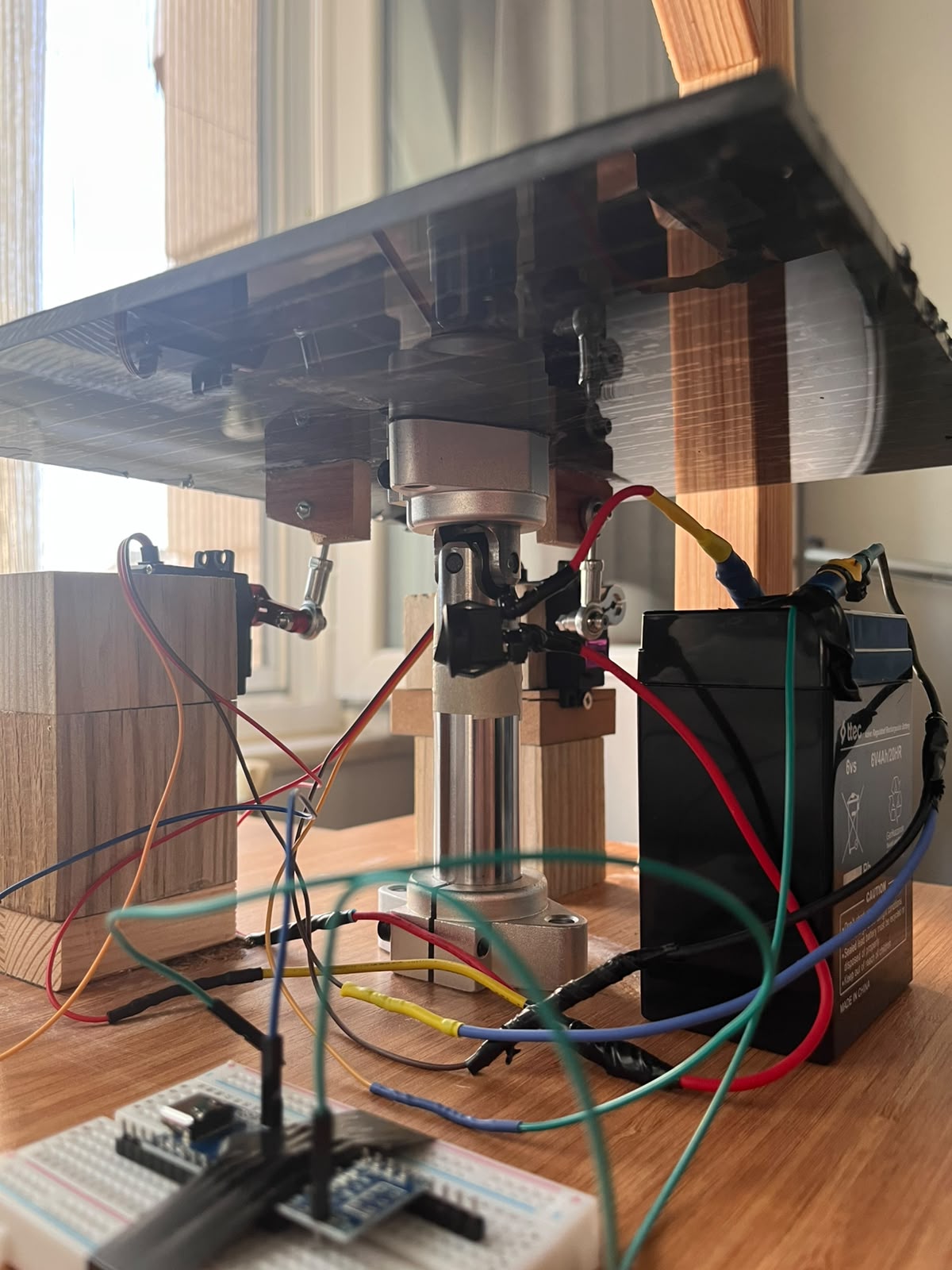

The servos tilt the table to keep the ball from falling off.
Then the loop repeats with the next camera frame.
Mechanical design
